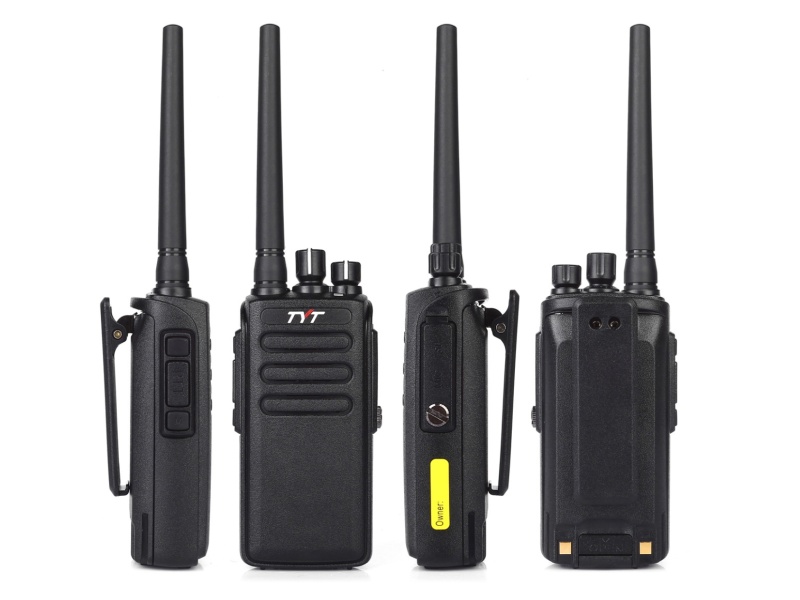

TYT MD-680 VHF DMR Radio

TYT MD-680 VHF DMR Radio
Compatible with Motorola and Hytera DMR

Radios This full-featured DMR (MotoTRBO) radio is a very interesting option in its class.
Compatible with Motorola (MotoTRBO), Hytera DMR radios, and all other DMR radios.

Frequency range: 137–174 MHz
; Operating voltage: 7.2 V
; Operating temperature: –30 °C to +60 °C
Storage temperature: -40 °C to +85 °C
Continuous operating time: Analog: 15 hours
; Digital: 25 hours
Battery capacity: 2200 mAh

Transmitter:
Frequency range: 136–174 MHz
Channel spacing: 12.5 kHz
Frequency stability: ±1.5 ppm
TX power: Low: 1 W, High: 10 W
FM noise: -40 dB @ 12.5 kHz
FM modulation mode 12.5 kHz: 11F 0F 3E
4FSK digital modulation mode 12.5 kHz (data only): 7K60FX 12
.5 kHz (data + voice): 7K60FX
Modulation limit 2.5 KHz
Nominal audio distortion ≤3%
Digital protocol ETSITS102361-1, -2, -3
AMBE + 2TM

vocoder Receiver:
Frequency range 136–174 MHz
Channel spacing 12.5 kHz
Frequency stability ±1.0 ppm
Analog sensitivity 0.35 μV / –116 dBm (20 dB SINAD)
0.22 μV / -120 dBm (typical)
Digital sensitivity 0.3 μV / -117.4 dBm (BER 5%)
0.7 μV / -110 dBm (BER 1%)
