Tecsun PL-380 DSP

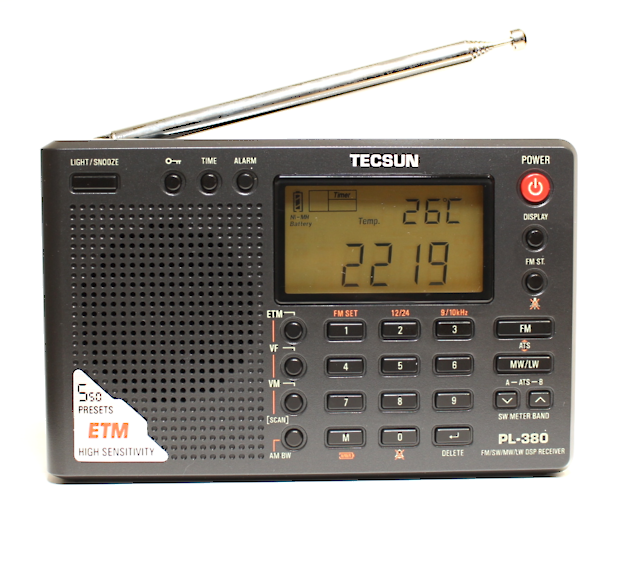

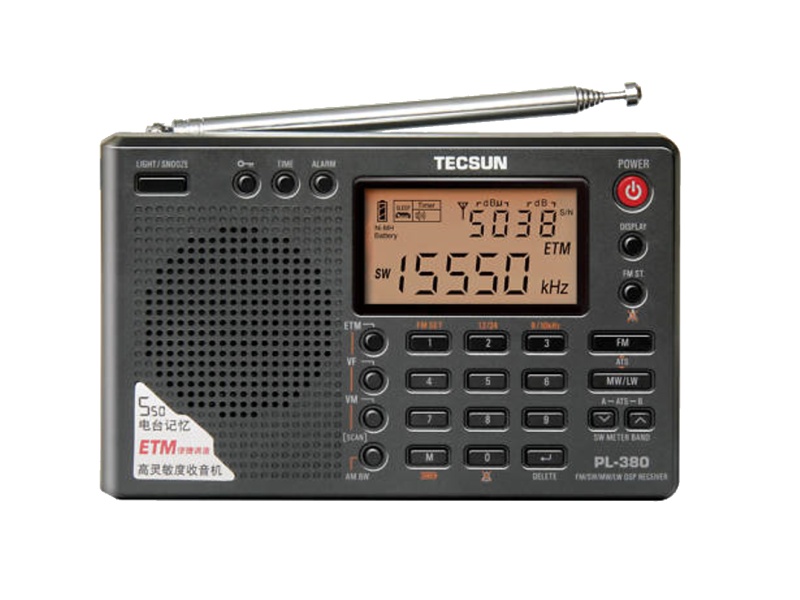

Tecsun PL-380 DSP Survey Receiver

The Tecsun PL-380 is a portable receiver equipped with DSP (Digital Signal Processing).
It uses si4734 DSP microchips (from Silicon Labs in the U.S.) to digitize the analog MW/FM/SW signal base
using modern software technologies and radio principles. It significantly improves sensitivity, selectivity, S/N ratio, and interference rejection.


The PL-380 features an Easy Tuning Mode (ETM), Tecsun’s proprietary tuning method. The ETM feature allows users to automatically scan for new radio stations without overwriting stations already stored in the radio’s memory.
ETM is an ideal feature for users who listen to radio broadcasts in various locations.

Frequency range:

Selectable FM range:
64–108 MHz
, 76–108 MHz
, 87–108 MHz

; Selectable MW (AM) range:

9 kHz steps: 522–1,620
kHz (10 kHz steps): 520–1,710
kHz LW: 153–513 kHz
SW: 2,300–21

,950 kHz Tuning methods:

Easy Tuning Mode (ETM): Automatically searches for new radio stations without overwriting existing presets.
Newly found stations are temporarily stored in ETM memory.

Automatic Tuning Save (ATS) for FM / MW / LW / SW
Manual tuning
Direct frequency entry via the keypad

Basic functions:

Multifunction digital display shows:
Frequency
Signal
strength S/N ratio N
Clock and alarm (12/24-hour format)
Temperature (°C or °F)
Battery
level LCD display
550 preset memories (100 memories each for MW, FM, and LW, 250 presets for SW)
Alarm with radio or buzzer and automatic shut-off 1–90 minutes
Sleep timer (1–120 minutes)
FM Mono & Stereo (headphones)
Light & Snooze function—5 minutes, repeats
three times Headphone jack
DC 5V USB port (USB cable not included)
Built-in speaker (D50mm, 500mW)
Built-in charging system for Ni-MH rechargeable batteries
Power supply: external USB adapter 5V / 250mA (not included) / 3 AA batteries (not included)
Unit dimensions: 135 x 83 x 27 mm (W x H x D)

Original accessories:
1 pair of stereo headphones
, 1 protective case
, 1 FM/SW

wire antenna Specifications:
Noise
sensitivity limit: FM <3 µV
, MW <1 mV/m
, LM <10 mV/m
, SW <20 µV

; Selectivity
: FM >60 dB
, MW >60 dB
, LM >60 dB
, SW >60 dB
