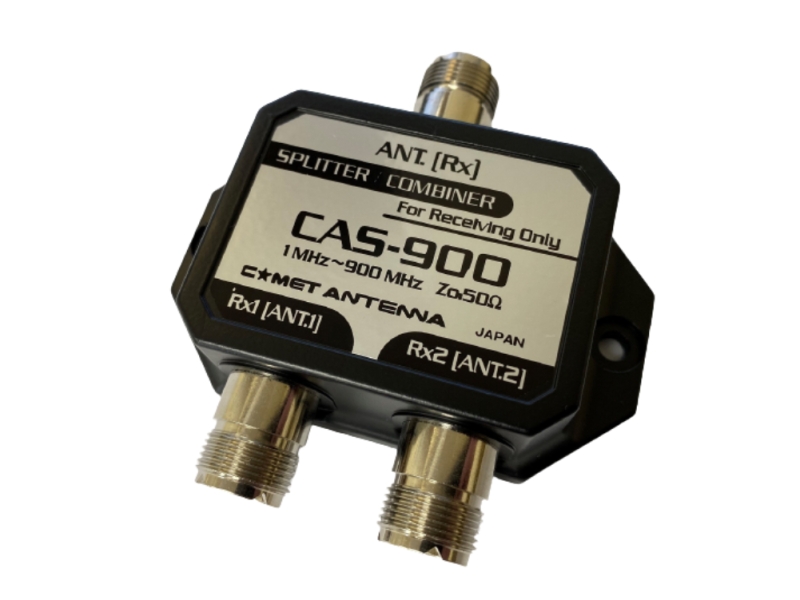

CAS-900 Antenna Splitter/Combiner

The Comet CAS-900 allows two receivers to be connected to a single antenna with minimal signal loss. ¨
A high degree of isolation (20 dB) between the two receivers ensures that each receiver can be tuned and operated as if it were connected to its own antenna.
The CAS-900 can also be used in reverse—that is, as an antenna combiner for two antennas connected to a single receiver.
This device operates from medium wave to 900 MHz.
This is a passive (unamplified) device. The CAS-900 uses three SO-239 connectors.
Frequency range: 1–900 MHz

Electrical specifications

Peak power: 2 watts (PEP) Not intended for transmission.
VSWR: less than 1.5 (less than 2.0 at 900 MHz)
Impedance: 50 ohms
Insertion loss: typically 0.5 dB
Isolation: typically 20 dB

Mechanical specifications

Connector type: UHF (PL) female
Connector type(s): UHF (PL) female
Length: 90 mm
Height: 88 mm
Width: 27 mm
