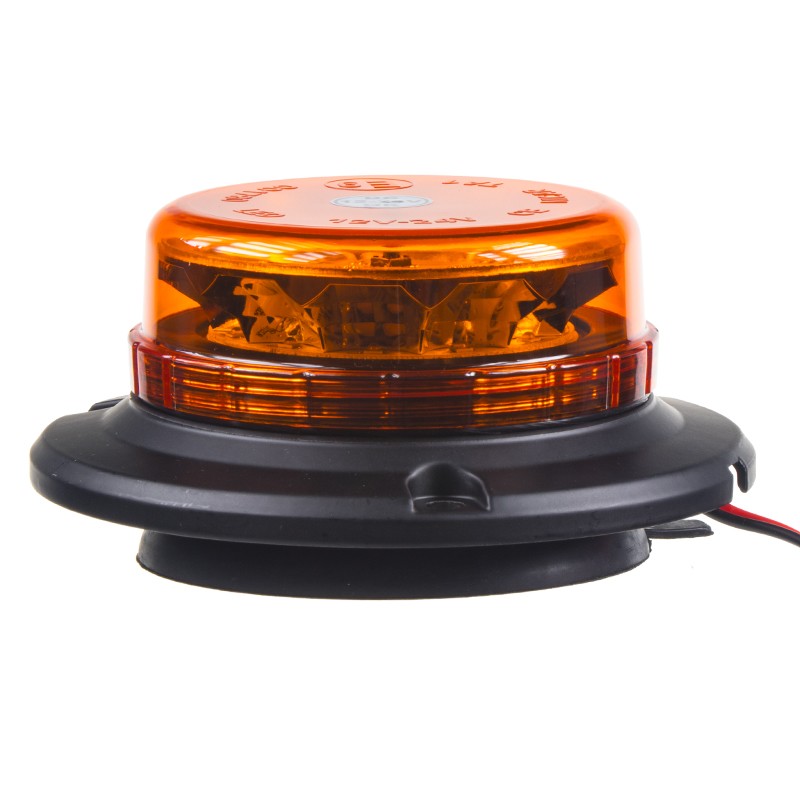

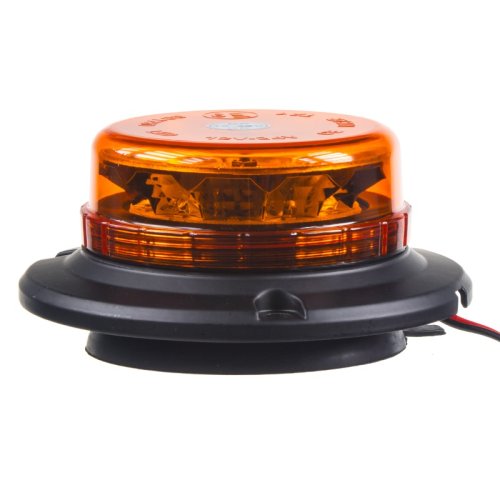

12-24V LED Beacon, 12x3W Orange, Magnet

12-24V LED Beacon, 12x3W Orange, Magnet

Professional orange LED beacon with a striking warning effect and special optics. Designed for mounting
with a magnet.

Technical Specifications:

ECE R10, R65

certified; light source: 12 high-performance 3W

LEDs; 3 modes: 2x flashing, 1 rotation; mode selection is performed after removing (unscrewing) the orange cover; there is a button on the top to select the mode

; aluminum

base; magnetic attachment or fixed mounting (mounted with 3 screws)

. Cable length: 25 cm without CL socket; mode control via a switch inside the beacon

. IP67

moisture protection. Supply voltage: 12–24 V

. Operating temperature: -40 to +65 °C

; dimensions: base diameter 150 mm, housing diameter 108 mm, height 56 mm

; wire

connections: red +
, black –

. Note:

Magnetic beacons and ramps are not permanently mounted and are intended primarily for marking a stationary vehicle!!!
When used while driving, high speed (combined with weather, wind, or debris on the vehicle) may cause the beacon or ramp to fall off and be destroyed
. Caution—a fallen beacon or ramp may cause property damage or endanger health and life.
Neither the manufacturer nor the seller assumes any liability for the magnetic beacon (ramp) used while driving.
