RM FILTR Antenna 35/600

RM Italy 35/600 (600 W) Filter: The RM 35/600 is a highly efficient low-pass filter (LPF)
It is designed to effectively suppress unwanted higher harmonic frequencies generated during transmission, thereby reliably preventing interference with nearby devices such as television receivers (TVI) or radio receivers.
The filter is primarily intended for operation in the 24 to 30 MHz bands (including the 10-meter and 12-meter amateur radio bands as well as CB radio) and can easily handle continuous transmit power of up to 600 W.
High filtering efficiency ensures very steep attenuation of unwanted frequencies (more than 50 dB at 55 MHz and over 70 dB at 100 MHz)
Minimal signal loss—with an extremely low insertion loss of less than 0.15 dB—ensures that the filter does not reduce your station’s effective power in any way.
It safely handles a continuous power of 600 W and a peak power (SSB) of up to 1200 W.
Although the ports are labeled RTX (input) and ANT (antenna), the circuitry is fully symmetrical, and the filter operates in both directions.

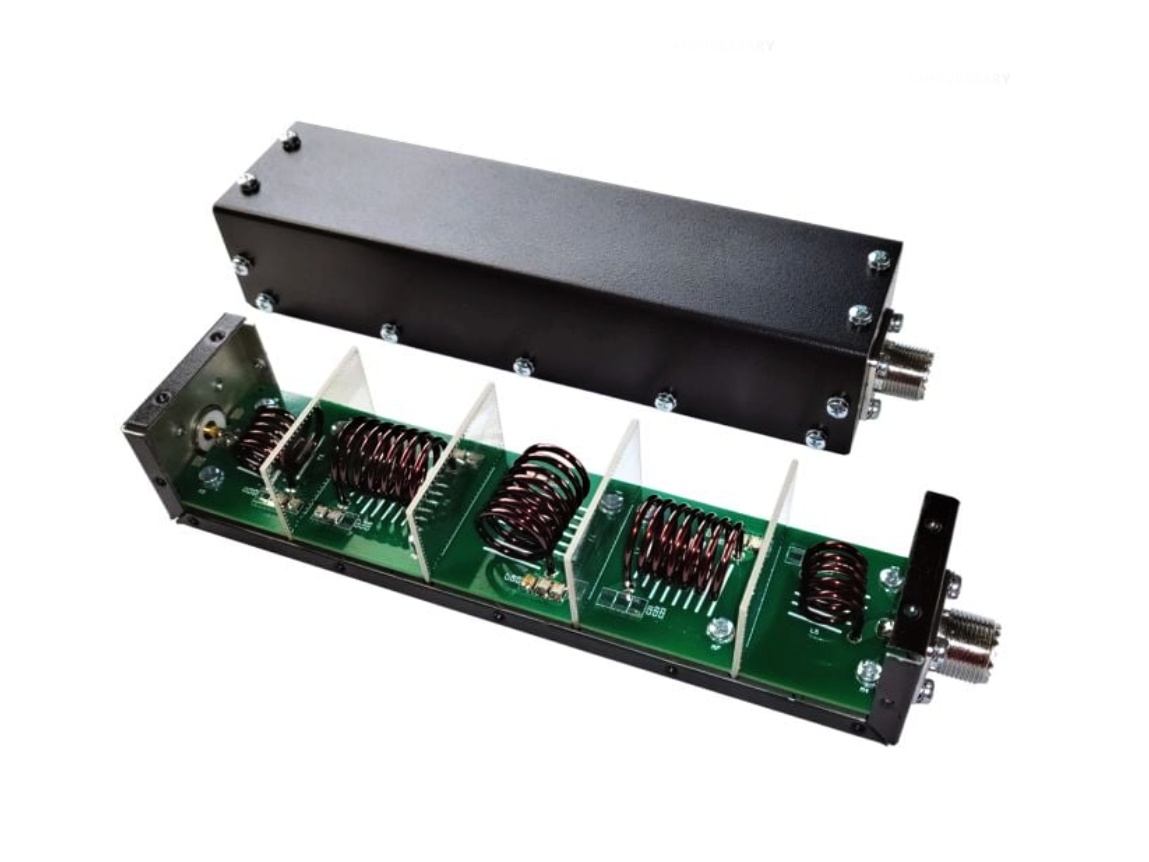

The robust design features reliable SO-239 (PL) connectors with Teflon insulation and gold-plated contacts for maximum conductivity and long service life.
Technical Specifications
:- Power: 600
W- Peak power: 1200
W- VSWR: <1.15:1 dB at 20–30 MHz-
Impedance: 50
ohms- Insertion loss: <0.15 dB at 20–30
MHz- Attenuation: >50 dB at 60 MHz / >70 dB at 100


MHz- Length: 200
mm- Height: 40
mm- Width: 50
mm- Weight: 480 g
