ALLAMAT 298 for NRC CTCSS
Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:1110510,00
Manufacturer:ALLAMAT
Availability:
Made to order
Price without VAT: 2 892 ,-
price with VAT: 3 499 ,-
price with VAT: 3 499 ,-
ALLAMAT 298 Pro CTCSS CB Radio
Mobile CB Radio (with NRC)
An ultra-compact mobile CB radio that brings top-quality communication to your car or truck.
This model is equipped with modern NRC (Noise Reduction Circuit) technology for digital noise filtering and supports CTCSS/DCS
encoding. Thanks to its multi-standard mode, it works seamlessly throughout Europe.
Key Features and Functions Crystal-clear sound (NRC): The built-in digital filter effectively suppresses engine noise and road noise. The
result is perfectly clear voice transmission even in noisy environments.
(CTCSS & DCS): Support for selective calling ensures that you won’t be disturbed by other calls on the same channel.
You’ll hear only those stations set to the same sub-tone.
Multi-standard design allows for easy switching between European frequency standards (including AM and FM modes) to ensure compliance with regulations in every country.
Compact Size: The unit’s compact body fits easily into any vehicle interior without taking up space in the passenger area.Intuitive controls: The
clear display and logically arranged buttons ensure safe and quick operation even while driving.
Technical specifications:
Frequency band: 27 MHz (CB – Citizen Band)
Modulation: AM / FM (depending on the selected standard)
Transmit power: 4 W
Selective calling: CTCSS and DCS codes
Noise filtering: Digital NRC
system Power supply: 13.8 V DC
Antenna connector: PL-259 (UHF-female)
Package
Contents: Radio

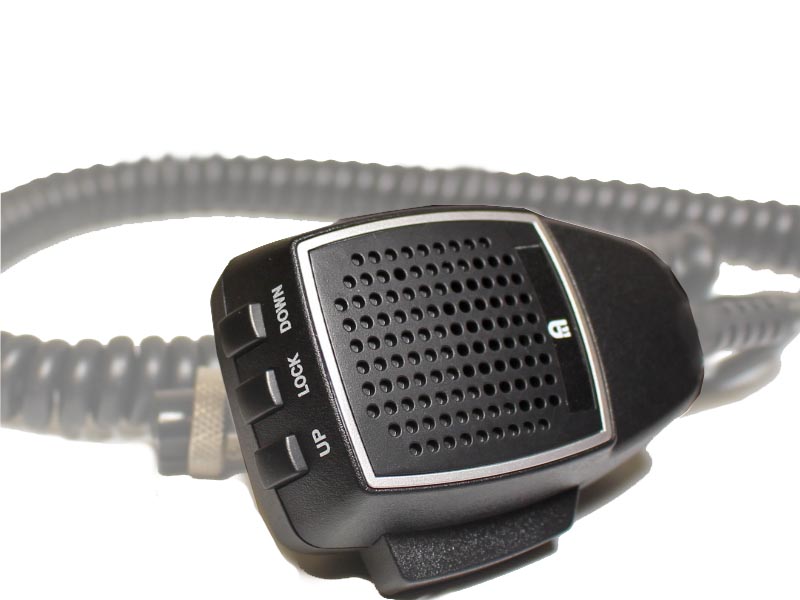

, Handheld microphone with controls
, Vehicle
mounting bracket (console), Power cable, Set of screws and mounting accessories
, User manual
A new model of a multi-standard CB radio that stands out primarily for its large, easy-to-read display, compact
dimensions, front-panel speaker, 12V and 24V power options, and many other useful features.
Features:
12V/24V
power options LCD display
Features: VOX
Modulation: AM, FM
Channel switching via the microphone
Technické parametry
| Frekvenční rozsah | 26,56-28 MHz |
|---|---|
| Provozní režim | F3E (FM), A3E (AM) |
| Řízení frekvence | PLL syntezátor |
| Frekvence tolerance | 0,002% |
| Rozsah provoz teplot | -10 až +55 ° C |
| Napájení | 12-28V |
| Rozměr | 170x51x94mm |
| Hmotnost | 980 gramů |
| VYSÍLAČ | : |
|---|---|
| Vysílací výkon | 4 W při 13,2 V DC |
| Modulace: | AM:od 85% do 95%, |
| Modulace | FM: 1,8 kHz + - 0,2 kHz |
| Frekvenční charakteristika | 300 Hz až 3000 Hz |
| Výstupní impedance | 50 Ohmů, nevyvážená |
| Harmonické potlačení | méně než -54 dBm |
| PŘIJÍMAČ | : |
|---|---|
| Přijímací systém | superheterodyn s duální konverzí |
| Frekvence IF | dvojitá konverze 1. 10.695 MHz / 2. 455 kHz |
| Citlivost AM | 0,7 uV pro 10 dB (S + N) / N |
| Citlivost FM | 0,7 uV pro 20 dB SINAD |
| NF výkon | 2 W @ 16 Ohm |
| Zkreslení zvuku | méně než 8% při 1 kHz |
| Frekvenční charakteristika | 300 Hz až 2500 Hz |
| Vestavěný reproduktor: | 16 Ohmů, kulatý |
| Squelch | nastavytelný , DSS |
| Obsah balení | |
- Radiostanice ALLAMAT 298
- DIN rámeček pro montáž *otvor autorádio*
- držák *U*
- Mic držák kov
- Napájecí kabel s pojistkou 2,5A
- Šroubky
If you have any questions about this product, please don't hesitate to contact us!
