Super Carbonium SIRIO 140 cm

A mobile CB antenna with a robust design and a high-quality metal mount for the 1,400 mm-long radiator; it attaches to the joint via a wing nut (therefore, the antenna can also be used on a DV magnet).

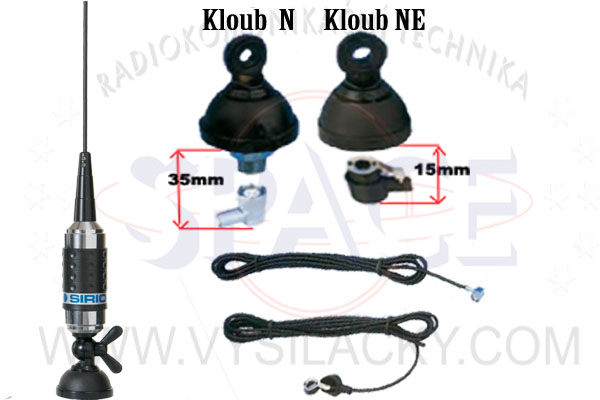

The antennas are supplied with joints for the NE connector, which has a 12.5 mm mounting hole and a connector height of 15 mm below the joint.
This connector type is particularly suitable for indoor use (it is not moisture-resistant). The
second joint type is NF, which has a mounting hole of 8 mm and a connector height of 35 mm below the joint.
This connector type is suitable for outdoor use (clamps, fasteners, etc.)
. Maximum short-term power handling: 250 W; long-term power handling: 35 W; vertical polarization; 4-meter RG58
cable; mounting hole diameter: 12.5 mm.


TECHNICAL
PARAMETERS------------

--------------------------------- Impedance ..............................................50 ohms -
Frequency range ................................... 27–28.5
MHz - Polarization ................................................
vertical- S.W.R. ......................................................1.2:1
- Bandwidth............................................1620 kHz
- Maximum power......................................35 watts continuous / 250 watts
peak- Antenna length...........................................1,130
mm- Antenna weight......................................480 g-
Mounting hole.........................................12 mm NF joint type / 8 mm
NE joint type- Connector height below the base ....................15 mm NE joint / 35 mm NF


joint The station connector is not included in the delivery.

If shipped via a courier service, a surcharge of 40 CZK (excluding VAT) is charged for special packaging.
