RM KL 703 Amplifier
Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:4440080,00
Manufacturer:OEM
Availability:
In stock (2 see)
Rudná: 2 see
Počernice: 0 see
Price without VAT: 11 570 ,-
price with VAT: 14 000 ,-
price with VAT: 14 000 ,-
RM KL 703

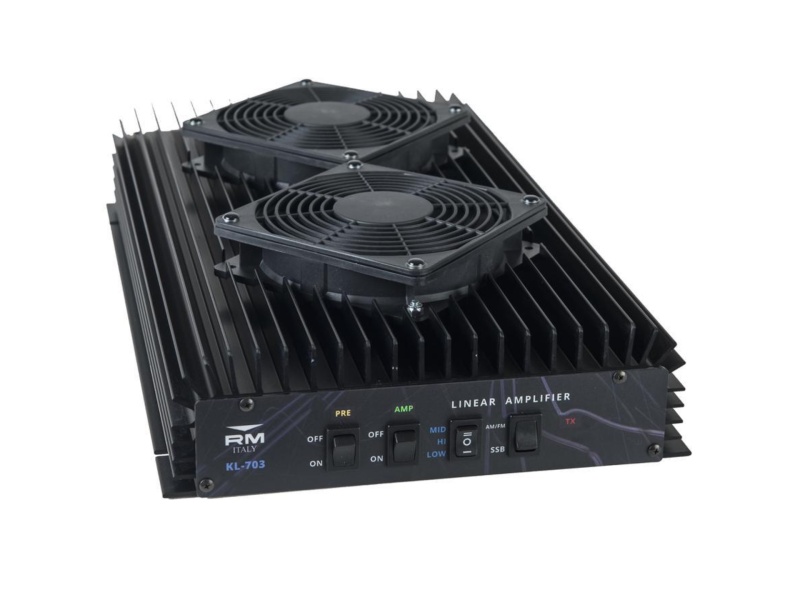

Amplifier KL703 Linear Amplifier 25-30 MHz 500 W (New)
0 out of 5 based on 0 customer
ratings 0 reviews
Add a new review
The KL703 is a new 500 W linear amplifier for use between 25 and 30 MHz (developed for the 10 m amateur radio band).
It can be used for all types of narrowband modulation (SSB, CW, AM, FM, and Data).
It is particularly suitable for portable/mobile operation, as it requires a 13.8 Vdc supply voltage.
The KL703 requires approximately 30 W for maximum output power.
The harmonic distortion is better than -55 dB. The
KL703 also features an RX preamplifier that can be used to improve the reception of weak signals.
Operating frequency: 25–30 MHz
; Modes: SSB, CW, AM, FM, DATA
; Transistors: 16x RM3 MOSFETs
; Current draw: Max. 50
A; Power supply: 13.8 Vdc ± 1 V, 60 A.
Internal fuses: 4x15 A (automotive type)
Power consumption: 1–35 W max (all modes)
Output power: 500 W max
. Max. pass-through power (amplifier off): 50 W.
Dimensions: 240x67x90
mm Weight: 4.3 kg
WARNING: This device is not authorized for use in CB radio operations.
Warranty: 24 months, excluding the power transistors.
(Power transistors are not covered by the warranty.)
Please note that the use of a linear
amplifier is governed by specific laws that the user must be familiar with;
in any case, the manufacturer disclaims any liability arising from
the use of this device.
