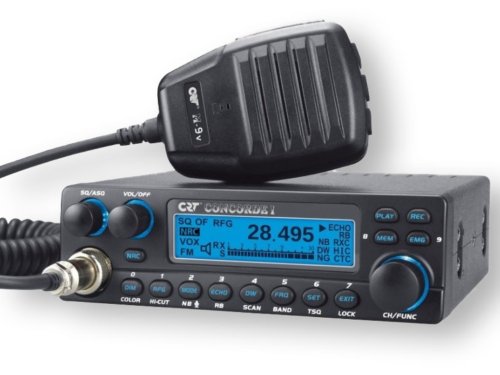

CRT CONCORDE I
Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:1110250,00
Manufacturer:
Availability:
In stock (2 see)
Rudná: 2 see
Počernice: 0 see
Price without VAT: 3 471 ,-
price with VAT: 4 200 ,-
price with VAT: 4 200 ,-
CRT CONCORDE I
Product
Details AMATEUR RADIO 10m (can be expanded to the CB band)
AM/FM
Mode Frequency Range 28–29.7 MHz
Adjustable Power: AM: 4 W (PEP 12 W) / 20 W (PEP 60 W) and FM: 4 W / 20 W / 50 W
Input Voltage 13.8 V DC
Frequency Bands A/B/C/D/E/F/G/H/I + VFO
Channels 40 channels (programmable) in each band
Memory 99
Step 1 kHz / 5 kHz / 10 kHz / 100 kHz / 1 MHz
S-meter Yes
SWR meter Yes: protection that prevents transmission if SWR is too high
SQUELCH Manual or Automatic (ASQ)
ROGER BEEP Yes: (1–6)
RF GAIN Yes: receiver (RX)
sensitivity adjustment MICRO GAIN Yes: 9 adjustable
levels CTCSS / DCS (encoder/decoder)
38 CTCSS / 104 DCS: sub-audio code for repeater activation, such as a selective tone
NB/HI CUT Filters Yes: noise filters
NRC filter function Yes: RX/TX Noise Reduction—adjustable in 5 levels—
SPLIT/RELAY function Yes: allows transmitting and receiving on two different frequencies in half-duplex
mode DOUBLE WATCH function Yes
VOX (VOX) Yes: this function triggers the microphone (hands-free)
TOT (TOT) function Yes: timeout
delay SCAN function Yes: automatic search for occupied channels
COMPANDER function Yes: Clear voice
transmission RESET Function Yes: in case of a malfunction or incorrect operation, it is possible to restore factory settings or reset functions
DIMMER Function Yes: for adjusting the front panel dimmer/brightness—6 levels—
Various functions
ECHO on/off (32 levels)
BEEP (on/off)
Key Lock
REC (Recording) Function
CLOCK SETTINGS (date and time)
ALARM SETTINGS (programmable alarm)
Backlit buttons
Jack connector for external speaker
Microphone: Electret type + UP/DOWN selection + 6-pin connector on the front panel. Microphone type
selection: electret or dynamic
Display: LARGE FREQUENCY and/or channel display + BRIGHTNESS function (backlight brightness) + CONTRAST function (adjustable LCD contrast) + 7 available colors
Dimensions 169 (D) x 159 (D) x 48 (H)
Weight 1.02 kg
Product
Details AMATEUR RADIO 10m (can be expanded to the CB band)
AM/FM
Mode Frequency Range 28–29.7 MHz
Adjustable Power: AM: 4 W (PEP 12 W) / 20 W (PEP 60 W) and FM: 4 W / 20 W / 50 W
Input Voltage 13.8 V DC
Frequency Bands A/B/C/D/E/F/G/H/I + VFO
Channels 40 channels (programmable) in each band
Memory 99
Step 1 kHz / 5 kHz / 10 kHz / 100 kHz / 1 MHz
S-meter Yes
SWR meter Yes: protection that prevents transmission if SWR is too high
SQUELCH Manual or Automatic (ASQ)
ROGER BEEP Yes: (1–6)
RF GAIN Yes: receiver (RX)
sensitivity adjustment MICRO GAIN Yes: 9 adjustable
levels CTCSS / DCS (encoder/decoder)
38 CTCSS / 104 DCS: sub-audio code for repeater activation, such as a selective tone
NB/HI CUT Filters Yes: noise filters
NRC filter function Yes: RX/TX Noise Reduction—adjustable in 5 levels—
SPLIT/RELAY function Yes: allows transmitting and receiving on two different frequencies in half-duplex
mode DOUBLE WATCH function Yes
VOX (VOX) Yes: this function triggers the microphone (hands-free)
TOT (TOT) function Yes: timeout
delay SCAN function Yes: automatic search for occupied channels
COMPANDER function Yes: Clear voice
transmission RESET Function Yes: in case of a malfunction or incorrect operation, it is possible to restore factory settings or reset functions
DIMMER Function Yes: for adjusting the front panel dimmer/brightness—6 levels—
Various functions
ECHO on/off (32 levels)
BEEP (on/off)
Key Lock
REC (Recording) Function
CLOCK SETTINGS (date and time)
ALARM SETTINGS (programmable alarm)
Backlit buttons
Jack connector for external speaker
Microphone: Electret type + UP/DOWN selection + 6-pin connector on the front panel. Microphone type
selection: electret or dynamic
Display: LARGE FREQUENCY and/or channel display + BRIGHTNESS function (backlight brightness) + CONTRAST function (adjustable LCD contrast) + 7 available colors
Dimensions 169 (D) x 159 (D) x 48 (H)
Weight 1.02 kg
