Albrecht AE-5900
Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:1110200,00
Manufacturer:
Availability:
In stock (5 see)
Rudná: 5 see
Počernice: 0 see
Price without VAT: 4 050 ,-
price with VAT: 4 900 ,-
price with VAT: 4 900 ,-

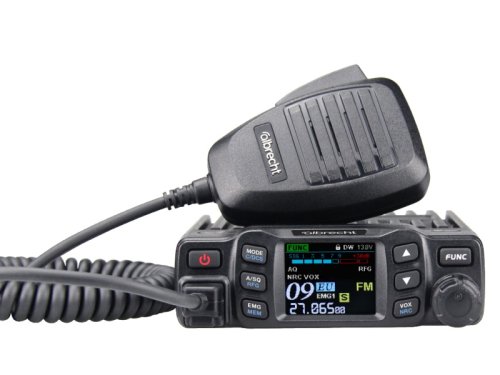

Albrecht AE-5900
New SSB radio model.
> Multifunctional CB
radio > AM/FM/SSB
> CTCSS/DCS
> 16 user-definable memory slots
> VOX function (adjustable)
> NRC
noise reduction circuit > ASQ (automatic or manual
) > Scanning (individual channels can be disabled)
> CW (telegraph)
function > Repeater function (allowed only in Germany)
and much more.
It can be used in a car or as a base station with a suitable DC power supply.
This device complies with the latest European standards and is, of course, EU-approved.
Technical Specifications:
Transmission frequency 26.565 – 27.99125 MHz
Transmission power 4 W (AM/FM) / 12 W (SSB)
Frequency stability ± 5.0 ppm
Harmonics > -54 dBm / 4 nW
Modulation distortion > 5%
FM sensitivity 1.0 µV at 20 dB SINAD
AM sensitivity 1.0 µV at 10 dB SINAD
SSB sensitivity 0.25 µV at 10 dB SINAD
Input voltage 10.8–13.8 V
Current consumption > 3.5 A
Audio output (external speaker) 3 W at 8 ?
Antenna connector: SO-239 / PL (50 ?)
Operating temperature: -20 – +55 ?
Dimensions 163 x 124 x 39 mm (L x W x H)
Weight 706 g
Important Notice: 13.8V POWER SUPPLY!!!
The Albrecht AE 5900 is the successor to the well-known and popular AE 5890—a new two-way radio for those who refuse to compromise.
Thanks to SSB (Single Sideband) modulation, you can count on exceptional range, crystal-clear sound (thanks to NRC), and minimal interference—even under the most demanding conditions.
New SSB radio model.
> Multifunctional CB
radio > AM/FM/SSB
> CTCSS/DCS
> 16 user-definable memory slots
> VOX function (adjustable)
> NRC
noise reduction circuit > ASQ (automatic or manual
) > Scanning (individual channels can be disabled)
> CW (telegraph)
function > Repeater function (allowed only in Germany)
and much more.
It can be used in a car or as a base station with a suitable DC power supply.
This device complies with the latest European standards and is, of course, EU-approved.
Technical Specifications:
Transmission frequency 26.565 – 27.99125 MHz
Transmission power 4 W (AM/FM) / 12 W (SSB)
Frequency stability ± 5.0 ppm
Harmonics > -54 dBm / 4 nW
Modulation distortion > 5%
FM sensitivity 1.0 µV at 20 dB SINAD
AM sensitivity 1.0 µV at 10 dB SINAD
SSB sensitivity 0.25 µV at 10 dB SINAD
Input voltage 10.8–13.8 V
Current consumption > 3.5 A
Audio output (external speaker) 3 W at 8 ?
Antenna connector: SO-239 / PL (50 ?)
Operating temperature: -20 – +55 ?
Dimensions 163 x 124 x 39 mm (L x W x H)
Weight 706 g
Important Notice: 13.8V POWER SUPPLY!!!
The Albrecht AE 5900 is the successor to the well-known and popular AE 5890—a new two-way radio for those who refuse to compromise.
Thanks to SSB (Single Sideband) modulation, you can count on exceptional range, crystal-clear sound (thanks to NRC), and minimal interference—even under the most demanding conditions.
If you have any questions about this product, please don't hesitate to contact us!
