CP-538

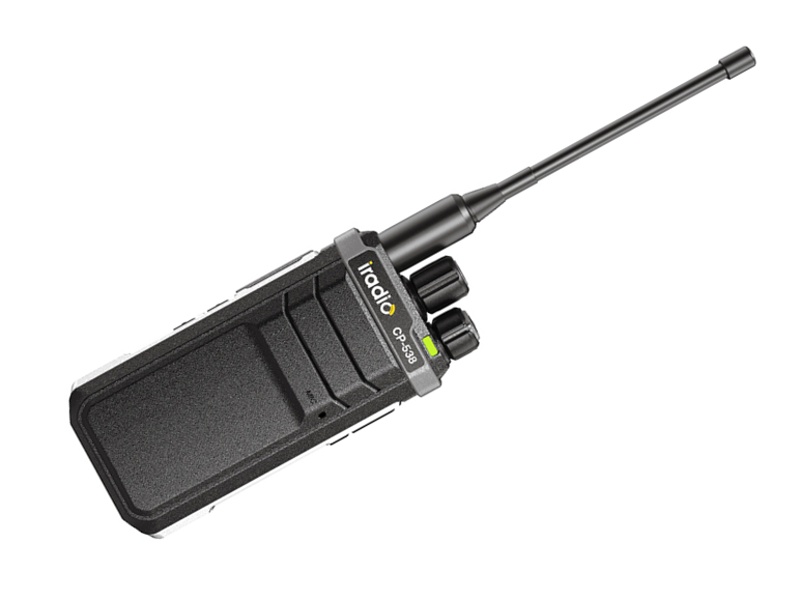

A professional analog two-way radio that operates in the UHF band (400–470 MHz).
Its main features include a hidden display and high durability (metal housing) for commercial use.
Key technical specifications:
Frequency range: UHF 400–470 MHz.
Number of channels: Features up to 199 programmable channels.
Output power: 5 W.
Power supply: 7.4V DC Li-ion battery with a capacity of 2000 mAh.
Charging: Supports the modern USB Type-C connector for easy charging.
Key features:
? 199 programmable channels
? Type-C charger
? VOX
? Voice prompts (customizable languages)
? One-click privacy decoding
? CTCSS / DCS
? Monitoring
? Encryption
? Scanning
? Emergency alarm
? Low power
alert? High/low power switching
? Customizable side buttons
? Power saving
? TOT
? Keypad lock
? 130×57×34 mm, 240 g
Specifications:
Frequency range UHF: 400–470 MHz
Voltage 7.4 V DC
Channel capacity 199 programmable channels
Channel spacing 12.5 kHz/25 kHz
Operating temperature -20 °C to +60 °C
Frequency stability ±2.5 ppm
Battery capacity 2000 mAh
Antenna impedance 50 ?
RF Power V: 4.5 W ±0.1 W: D: 0.5 W ±0.1 W
Modulation Mode F3E
Max. Frequency Deviation (W/N) ? 5 kHz/? 2.5 kHz
SNR (W/N) -45 dB/-40 dB
Transmit current 1500 mA
Intermodulation (W/N) 65 dB/60 dB
Audio distortion 5%
Audio output power 1 W (8 ?)
Receive current 500 mA
Standby current 70 mA
Battery capacity 2000
