DL 61 Artificial Load

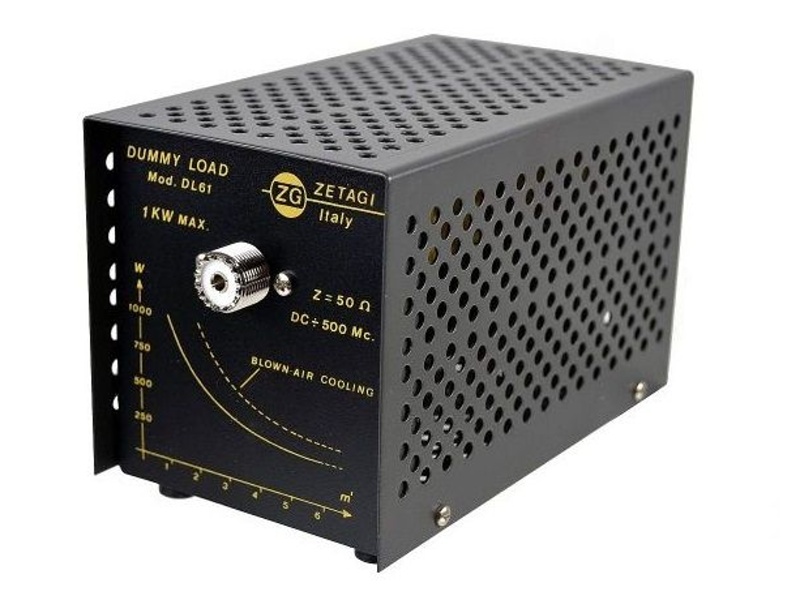

The Zetagi DL61 is a rugged radio-frequency dummy load designed for testing and tuning transmitters and radio stations.
It simulates an antenna with an impedance of 50 ? without emitting radio waves or causing unwanted interference into the airwaves.
Technical Specifications: Frequency range: 0 to 500 MHz (covers HF, VHF, and UHF bands).
Impedance: 50 ohms.
Maximum continuous power handling: 200 W.
Maximum power handling (short-term): 1,000 W (1 kW) for up to 1 minute, followed by a 5-minute cooling-off period.
With forced air cooling (fan), this duration may be extended.
Standing Wave Ratio (SWR):? 1:1.15 in the 0–200 MHz band? 1:1.30 in the 200–500 MHz
band Connector: UHF female (PL-259).
Perforated metal housing equipped with an aluminum heat sink on the rear side.
Dimensions: approx. 100 x 100 x 180 mm.
Weight: approx. 900 g.
