Rg 213 U
Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:3350115,00
Manufacturer:OEM
Availability:
In stock (at least 20 pieces)
Rudná: at least 20 pieces
Počernice: 0 see
Price without VAT: 65 ,-
price with VAT: 79 ,-
price with VAT: 79 ,-
RG-213-U

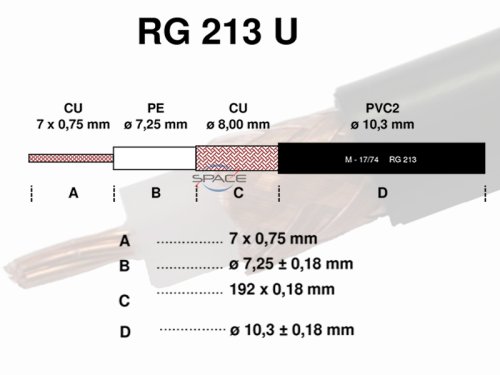

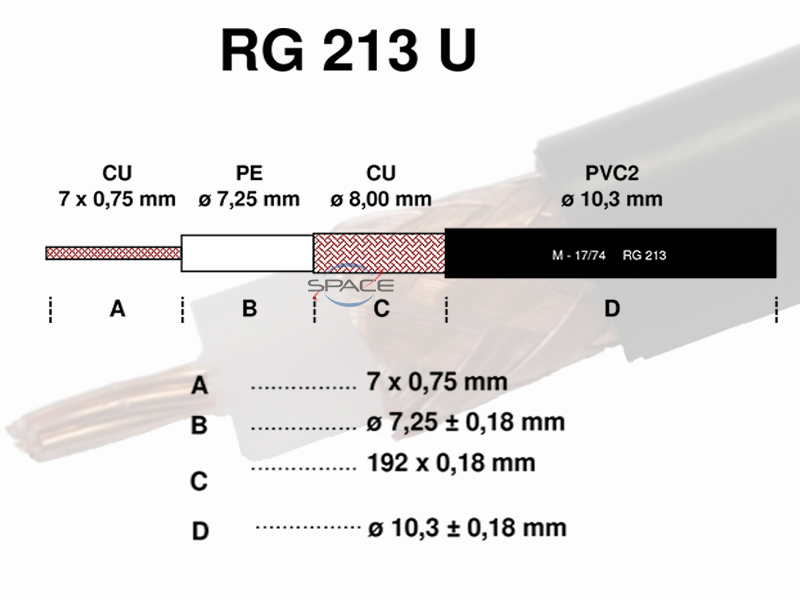

Coaxial Cable; Center Conductor: 7x 0.75 mm (copper)
; Dielectric: 7.25 ± 0.18 mm (LOW DENSITY POLYETHYLENE)
Braid: 192 x 0.18 mm (copper) PVC
jacket: 10.3 ± 0.18 mm (NON-CONTAMINATING POLYVINYL CHLORIDE)
Marking:
Attenuation: dB/100
m 5 MHz 1.2
50 MHz 4.3
100 MHz 6.4
200 MHz 9.5
400 MHz 13.7
500 MHz 15.3
600 MHz 16.9
800 MHz 20.4
1000 MHz 23.2
1500 MHz 30.4
Additional data available for download in the attachment.
Coaxial Cable; Center Conductor: 7x 0.75 mm (copper)
; Dielectric: 7.25 ± 0.18 mm (LOW DENSITY POLYETHYLENE)
Braid: 192 x 0.18 mm (copper) PVC
jacket: 10.3 ± 0.18 mm (NON-CONTAMINATING POLYVINYL CHLORIDE)
Marking:
Attenuation: dB/100
m 5 MHz 1.2
50 MHz 4.3
100 MHz 6.4
200 MHz 9.5
400 MHz 13.7
500 MHz 15.3
600 MHz 16.9
800 MHz 20.4
1000 MHz 23.2
1500 MHz 30.4
Additional data available for download in the attachment.
