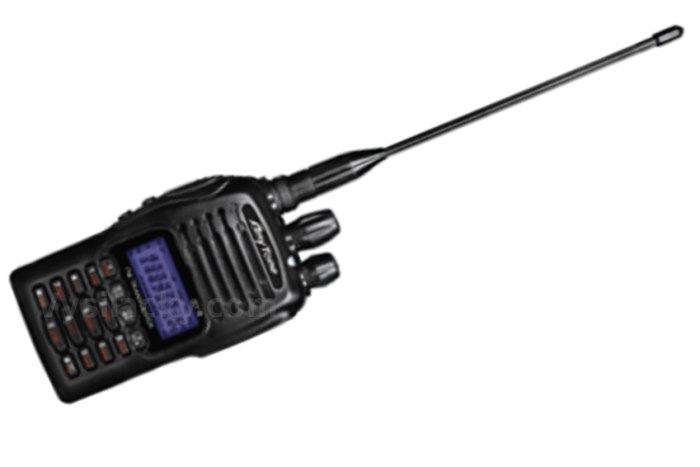

AT-3318 UVD UHF/VHF Cross-Band Repeater Radio

A handheld dual-band (VHF/UHF) radio with miniature dimensions, suitable not only for amateur radio operators.
Compared to the base model, it includes a cross-band repeater and an AM receiver.
Operating modes: UU, UV, VV, VU, UV as repeater mode.
51 groups + 1 user group defined by CTCSS + 1,024 DCS groups for encoding and decoding.
DTMF + 2-Tone + 5-Tone encoding and decoding.
Multiple scan modes: VFO scan + channel scan + priority scan + CTCSS scan + DCS scan.


Specifications:
-----------------
- Frequency range: VHF 144–146 MHz, UHF 430–440 MHz / 136–174 MHz, 400–470 MHz (after expansion)
- Power: switchable 5 W / 2 W
—200 memory channels
—50 CTCSS codes and 104
DCS codes—
VOX voice-activated transmission—1750 Hz tone
—FM radio (87.0 MHz–108.0 MHz)
- AM radio (118.0 MHz–136.0 MHz)
- AM radio (2.3 MHz–29.99 MHz)
- AM radio (0.52 MHz–1.71 MHz)
- Large, easy-to-read backlit
display - Low battery indicator -
Battery saver -
Desktop
charger - Time-out
timer - Keypad lock function -

Channel monitor - Tuning steps: 2.5/5/6.25/10/12.5/25 kHz

You can download the radio programming software at www.vysilacky.com under the “Downloads” tab.

The programming cable can be ordered separately.
