Fanfare Air Horn for Mask, 12/24V
Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:8860075,00
Manufacturer:
Availability:
Made to order
Price without VAT: 537 ,-
price with VAT: 650 ,-
price with VAT: 650 ,-

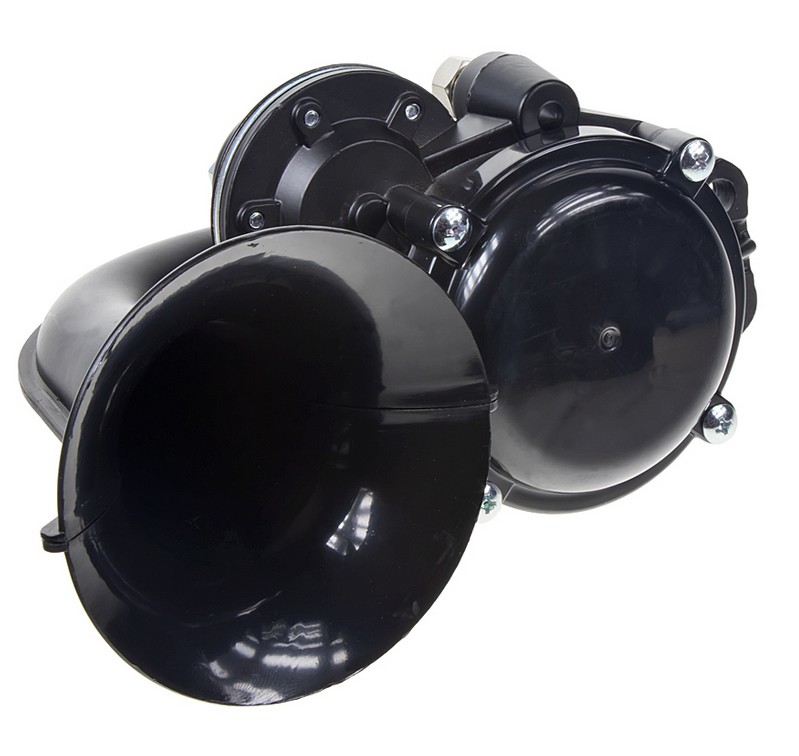

An air horn designed for vehicles with their own compressed air system.
The fanfare is triggered by an integrated solenoid valve, which can be operated at either 12 or 24 V.
The same horn is used, for example, in DAF and Volvo tractor-trailers.
Technical
Specifications• Supply voltage:
12/24 V• Current draw: 3.5 / 6.5 A•
Sound level: 120 dB•
Operating pressure: 0.3–0.8 MPa•
Sound frequency: 450
Hz• Dimensions: 208 x 145 mm, horn diameter 105
mm• DAF OEM code: 1784586
1667748• Volvo OEM code: 20383071
1620123• Material: ABS
plastic
The fanfare is triggered by an integrated solenoid valve, which can be operated at either 12 or 24 V.
The same horn is used, for example, in DAF and Volvo tractor-trailers.
Technical
Specifications• Supply voltage:
12/24 V• Current draw: 3.5 / 6.5 A•
Sound level: 120 dB•
Operating pressure: 0.3–0.8 MPa•
Sound frequency: 450
Hz• Dimensions: 208 x 145 mm, horn diameter 105
mm• DAF OEM code: 1784586
1667748• Volvo OEM code: 20383071
1620123• Material: ABS
plastic
If you have any questions about this product, please don't hesitate to contact us!
