Tecsun PL-320
Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:1120919,00
Manufacturer:ALAN - ALBRECHT
Availability:
Made to order
Price without VAT: 2 066 ,-
price with VAT: 2 500 ,-
price with VAT: 2 500 ,-

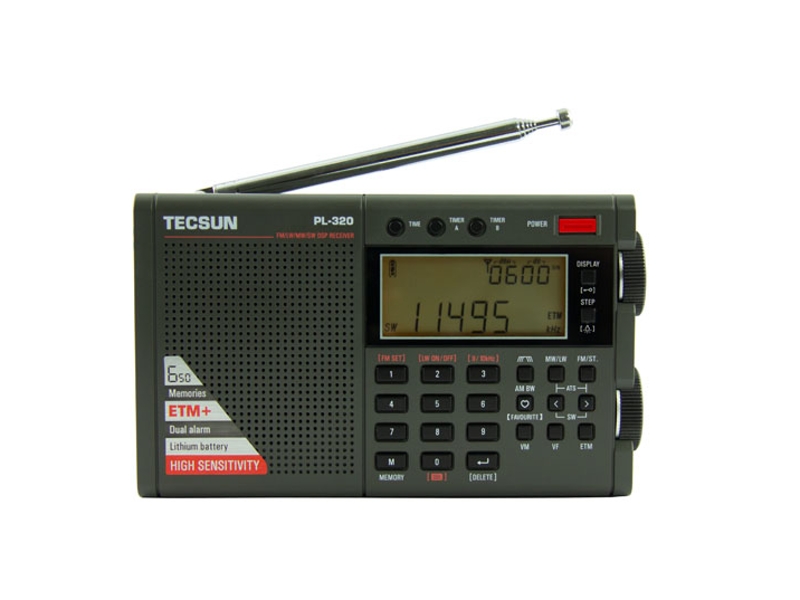

The Tecsun PL-320 is a portable PLL DSP multiband receiver.
The DSP microchip digitizes the analog radio signal, which, in combination with PLL (Phase-Locked Loop) circuits,
significantly improves the radio’s sensitivity, selectivity, S/N ratio, and resistance to interference.
The PL-320 receiver features the new Tecsun ETM+ function, which allows you to set time-specific presets for longwave (LW), mediumwave (AM), and shortwave (SW).
For quick access to your most-listened-to radio station, the keypad offers a shortcut by pressing the “Favorites” button.
Its compact size is ideal for travel.
Let the radio wake you up in the morning by setting the alarm, or set the sleep timer so that the device automatically turns off while you’re listening before falling asleep.
Charge the battery by connecting the radio to a 5V USB charger, similar to those used for most smartphones and tablets.
Package Contents:
Tecsun PL-320
, BL-5C
Li-ion battery, Tecsun
stereo headphones, Tecsun USB charging cable
, Tecsun
zippered pouch. Special Features:
“Favorites” button: Quick access to your favorite station ETM+
Antenna jack (3.5 mm) for FM / SW
AM bandwidth settings:
LW/MW: 2.5, 3.5, 5.0, and 9.0 kHz
; SW: 2.5, 3.5, 5.0, and 9.0 kHz
; FM frequency range
: 64.0 – 108 MHz
76.0 – 108 MHz
87.0 – 108 MHz
88.0 – 108 MHz
Tuning steps: 100 kHz
Fine-tuning steps: 10 kHz
MW: 520 – 1710 kHz
522 – 1620 kHz (9 kHz tuning steps)
520–1710 kHz (10 kHz tuning steps)
Tuning steps: 9 kHz or 10 kHz
Fine-tuning steps: 1 kHz
SW: 1711 kHz to 29999 kHz
Tuning
methods Direct keyboard
entry Automatic scanning
Manual
Basic features
Signal strength and S/N
ratio indicators Clock and alarm (24-hour format)
650 station
presets FM stereo/mono
selection Set independent alarms (Alarm A and Alarm B)
Radio
alarm Snooze function – 5 minutes
Sleep timer from 1 to 120 minutes
LCD backlight (always on or auto-off)
Key
lock function Antenna jack (3.5 mm) for FM / SW
Headphone jack (3.5 mm; 1/8 inch; 32 ~ 150 ?)
Speaker (8?, 0.25W)
USB-C
charging port Built-in charging system for lithium (Li-ion) rechargeable battery
Power / Charging
Battery power: BL-5C lithium (Li-ion) battery
DC power (FM only): 5V
Charging/Power: DC 5V / 500mA
Dimensions: 139 x 85 x 26 mm (W x H x D)
Specifications
Sensitivity:
FM (S/N = 30 dB) < 3 μV
MW (S/N = 26 dB) < 1 mV/m
LW (S/N = 26 dB) < 10 mV/m
SW (S/N = 26 dB) < 20
µV Selectivity:
FM > 60 dB
MW/LW > 60 dB
SW > 60 dB
The DSP microchip digitizes the analog radio signal, which, in combination with PLL (Phase-Locked Loop) circuits,
significantly improves the radio’s sensitivity, selectivity, S/N ratio, and resistance to interference.
The PL-320 receiver features the new Tecsun ETM+ function, which allows you to set time-specific presets for longwave (LW), mediumwave (AM), and shortwave (SW).
For quick access to your most-listened-to radio station, the keypad offers a shortcut by pressing the “Favorites” button.
Its compact size is ideal for travel.
Let the radio wake you up in the morning by setting the alarm, or set the sleep timer so that the device automatically turns off while you’re listening before falling asleep.
Charge the battery by connecting the radio to a 5V USB charger, similar to those used for most smartphones and tablets.
Package Contents:
Tecsun PL-320
, BL-5C
Li-ion battery, Tecsun
stereo headphones, Tecsun USB charging cable
, Tecsun
zippered pouch. Special Features:
“Favorites” button: Quick access to your favorite station ETM+
Antenna jack (3.5 mm) for FM / SW
AM bandwidth settings:
LW/MW: 2.5, 3.5, 5.0, and 9.0 kHz
; SW: 2.5, 3.5, 5.0, and 9.0 kHz
; FM frequency range
: 64.0 – 108 MHz
76.0 – 108 MHz
87.0 – 108 MHz
88.0 – 108 MHz
Tuning steps: 100 kHz
Fine-tuning steps: 10 kHz
MW: 520 – 1710 kHz
522 – 1620 kHz (9 kHz tuning steps)
520–1710 kHz (10 kHz tuning steps)
Tuning steps: 9 kHz or 10 kHz
Fine-tuning steps: 1 kHz
SW: 1711 kHz to 29999 kHz
Tuning
methods Direct keyboard
entry Automatic scanning
Manual
Basic features
Signal strength and S/N
ratio indicators Clock and alarm (24-hour format)
650 station
presets FM stereo/mono
selection Set independent alarms (Alarm A and Alarm B)
Radio
alarm Snooze function – 5 minutes
Sleep timer from 1 to 120 minutes
LCD backlight (always on or auto-off)
Key
lock function Antenna jack (3.5 mm) for FM / SW
Headphone jack (3.5 mm; 1/8 inch; 32 ~ 150 ?)
Speaker (8?, 0.25W)
USB-C
charging port Built-in charging system for lithium (Li-ion) rechargeable battery
Power / Charging
Battery power: BL-5C lithium (Li-ion) battery
DC power (FM only): 5V
Charging/Power: DC 5V / 500mA
Dimensions: 139 x 85 x 26 mm (W x H x D)
Specifications
Sensitivity:
FM (S/N = 30 dB) < 3 μV
MW (S/N = 26 dB) < 1 mV/m
LW (S/N = 26 dB) < 10 mV/m
SW (S/N = 26 dB) < 20
µV Selectivity:
FM > 60 dB
MW/LW > 60 dB
SW > 60 dB
