President LINCOLN II


Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:1110358,00
Manufacturer:PRESIDENT
Availability: In stock (7 see)
 Rudná: 7 see
 Počernice: 0 see
Price without VAT: 5 909 ,-
price with VAT: 7 150 ,-

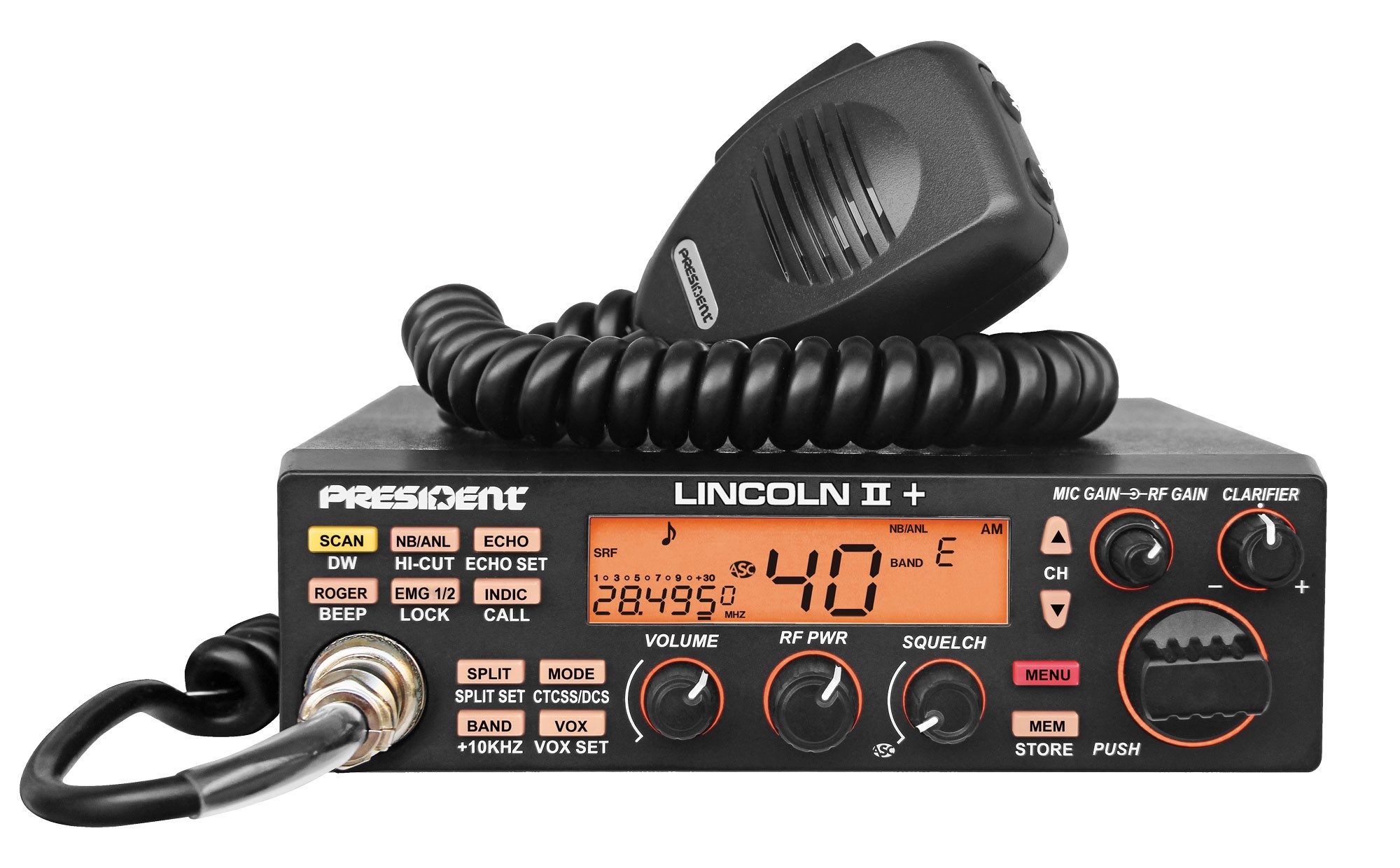

President LINCOLN II



A new model of a citizen's band radio. Three backlight modes, manual and automatic squelch, CTCSS (38) and DCS (104) codes.
The radio features manual and automatic squelch, as well as CTCSS (38) and DCS (104) codes.

- Modulation: AM / FM / USB / LSB /
CW- Frequency range: 24.890 MHz to 24.990 MHz and 28.000 MHz to 29.700
MHz- Can be expanded to the CB band and 11 m (by adding a 1 kOhm resistor). Service intervention upon customer request.
- Impedance: 50
ohms- Weight: 1.4 kg-
Backlight: 7
colors- Dimensions: 52 x 170 x 250
mm- Weight: 1.4 kg


Transmission
- Frequency tuning: ±300 Hz
- Transmit power: 50 W AM (PEP) / 35 W FM / 35 W USB-LSB (PEP) / 12 W
CW- Transmission interference: internal up to
-50 dBc- Audio frequency range: 300 Hz to 3 kHz in
AM/FM/USB/LSB- Radiated power on selected channel: internal up to
20 µW- Microphone sensitivity: 3.0 mV-
Current consumption: 6 A (depending on modulation)

Receiver Specifications

- Maximum sensitivity at 20 dB sine wave: 0.7 µV–110 dBm (AM), 0.35 µV–116 dBm (FM), 0.28 µV–118 dBm (USB/LSB/CW)
- Frequency response: 300 Hz–3 kHz in
AM/FM/LSB/USB- Channel selectivity: 60 dB-
Intermediate frequency range: 70
dB- Current consumption: 400 mA nominal, 600 mA maximum


Package contents

:- Radio
- Microphone with UP/DOWN buttons -
Mounting hardware-
Power cables and fuse

User manual (Czech) – CZ available for download.

Technical Information:



Basic- Modulation : AM / FM / USB / LSB / CW-

Frequency range : 28.000 MHz to 29.700

MHz- Impedance : 50 ohms-

Dimensions : 170 mm (width) x 250 mm (depth) x 52 mm (height)

- Weight : 1.4 kg

- Included accessories : microphone with UP/DOWN, mounting hardware, power cables, and fuse



Transmission- Frequency tuning : +/- 300 Hz-

Transmit power : 12W - AM / 28 W – FM / 31 W – USB-LSB / 12 W –

CW- Transmit Interference : internal up to

-50 dBc- Audio Frequency : 300 Hz to 3 kHz in AM/FM/USB/LSB

- Radiated power per selected channel : internal up to 20 µW-

Microphone sensitivity : 3.0

mV- Current consumption : 6 A (depending on modulation)

- Modulation signal distortion : 2%

Receiver parameters-

Maximum sensitivity at 20 dB sine wave : 0.7 µV – 110 dBm (AM), 0.35 µV – 116 dBm (FM), 0.28 µV – 118 dBm (USB/LSB/CW)

- Frequency response : 300 Hz – 3 kHz in

AM/FM/LSB/USB - Channel selectivity : 60 dB

- Intermediate frequency range : 70

dB- Current consumption : 400 mA nominal, 600 mA maximum
Technické parametry
Frekvenční rozsah od 24 890 Mhz do 24 990 Mhz a od 28 000 Mhz do 29 700 Mhz
Provozní režim AM / FM / USB / LSB / CW
Frekvence tolerance 0,002%
Rozsah provoz teplot -10 až +55 ° C
Napájení 13,8V
Rozměr 170 /250/52 mm
Hmotnost 1400 gramů
VYSÍLAČ :
Vysílací výkon 50 W AM (PEP) / 35 W FM / 35 W USB-LSB (PEP) / 12 W CW
Modulace: AM:od 85% do 95%,
Modulace FM: 1,8 kHz + - 0,2 kHz
Frekvenční charakteristika 300 Hz až 3000 Hz
Výstupní impedance 50 Ohmů, nevyvážená
Harmonické potlačení méně než -54 dBm
CTCSS 38 tónů
DCS 105 kódů
PŘIJÍMAČ :
Přijímací systém superheterodyn s duální konverzí
Frekvence IF dvojitá konverze 1. 10.695 MHz / 2. 455 kHz
Citlivost 0,7 µV - 110 dBm (AM) / 0,35 µV - 116 dBm (FM) / 0,28 µV - 118 dBm (USB/LSB/CW) 20 dB SINAD
NF výkon 1 W @ 16 Ohm
Zkreslení zvuku méně než 8% při 1 kHz
Frekvenční charakteristika 300 Hz až 2500 Hz
Vestavěný reproduktor: 16 Ohmů, kulatý
Obsah balení
  • Radiostanice President LINCOLN II
  • Rychlodržák
  • Kovový držák mic.
  • Napájecí kabel s pojistkou 2A součást radiostanice
  • Šroubky
