Tecsun PL-368 Scanner
Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:1120907,00
Manufacturer:TECSUN
Availability:
In stock (2 see)
Rudná: 2 see
Počernice: 0 see
Price without VAT: 2 190 ,-
price with VAT: 2 650 ,-
price with VAT: 2 650 ,-

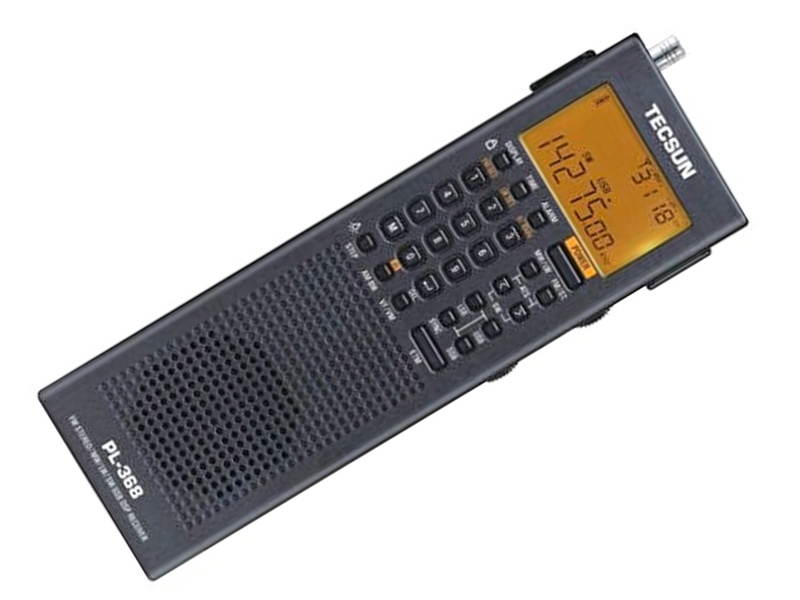

The new Tecsun PL-368 is an updated version of the highly successful Tecsun PL-365.
The main updates to the Tecsun PL-368 compared to the Tecsun PL-365 are:
A new, updated keypad with numeric keys for direct frequency
entry; Synchronous Detection (SYNC)
function; An updated Enhanced Tuning Mode (ETM) function; ETM+
Rechargeable BL-5C lithium-ion battery, including a USB-B charging cable (5V USB charger not included)
Additional features:
9/10 kHz
steps Auto-scan
function Automatic memory tuning (ATS)
850 memory channels
Alarm
Sleep
timer Off-timer
function Lock
Temperature in degrees Celsius or Fahrenheit
Specifications:
Frequency range
: - LW: 153–513 kHz - MW
: 520–1710 kHz / 522–1620
kHz- SW: 1711–29999 kHz- FM
: 64–108 / 76–108 / 87–108 / 88–108 MHz
LW Frequency Tuning Steps
:- AM: 9 kHz / 1
kHz- Single Sideband: 9 kHz / 1 kHz / 10 Hz
—Synchronous detection: 9 kHz / 1 kHz / 100 Hz
MW frequency tuning steps 520–1710 kHz:
—AM: 10 kHz / 1 kHz
—Single sideband: 10 kHz / 1 kHz / 10
Hz- Synchronous detection: 10 kHz / 1 kHz / 100 Hz
MW frequency tuning steps 522–1620 kHz:
- AM broadcasting: 9 kHz / 1 kHz-
Single-sideband: 9 kHz / 1 kHz / 10 Hz-
Synchronous detection: 19 kHz / 1 kHz / 100 Hz
SW frequency tuning steps:
- AM broadcasting: 5 kHz / 1 kHz-
Single sideband: 5 kHz / 1 kHz / 10 Hz-
Synchronous detection: 5 kHz / 1 kHz / 100 Hz
FM frequency tuning steps: 100 kHz / 10 kHz
Station memories (except ETM+)
:- LW:
100- MW:
150- SW:
300- FM:
100- SSB:
100- SYNCHRONIZATION: 100
Sensitivity
:- LW (S/N = 26 dB): <10
mV/m- MW (S/N = 26 dB): <1
mV/m- SW (S/N = 26 dB): <20
μV- FM (S/N = 30 dB): <3
µV Selectivity
: - LW: > 60 dB -
MW: > 60 dB -
SW: > 60 dB -
FM: > 60 dB
Detection synchronization lock range: +/- 1 kHz
IF frequency (DSP): AM 45 kHz; FM 128 kHz
FM stereo crosstalk (headphone output): 35 dB
Speaker: 16 ohms, 0.5 W.
Stereo headphone impedance: 32 ohms
Maximum output power: 350 mW
Quiescent current
: - <25 mA (FM/MW/LW)
- <45 mA (SW)
Standby current: <90 µA
Power supply: 3.7 V Li-ion battery BL-5C or external 5 V
DC Charging / external power supply: 5 V DC / 500 mA
Dimensions: 162 x 53 x 26 (with antenna retracted)
Weight: 130 grams
Package contents:
1x Tecsun PL-368 radio (black
) 1x high-sensitivity
AM antenna 1x stereo headphones
1x BL-5C
Li-ion battery 1x USB-B charging cable, (5V USB charger not included)
1x soft cotton carrying
bag 1x English user manual
The main updates to the Tecsun PL-368 compared to the Tecsun PL-365 are:
A new, updated keypad with numeric keys for direct frequency
entry; Synchronous Detection (SYNC)
function; An updated Enhanced Tuning Mode (ETM) function; ETM+
Rechargeable BL-5C lithium-ion battery, including a USB-B charging cable (5V USB charger not included)
Additional features:
9/10 kHz
steps Auto-scan
function Automatic memory tuning (ATS)
850 memory channels
Alarm
Sleep
timer Off-timer
function Lock
Temperature in degrees Celsius or Fahrenheit
Specifications:
Frequency range
: - LW: 153–513 kHz - MW
: 520–1710 kHz / 522–1620
kHz- SW: 1711–29999 kHz- FM
: 64–108 / 76–108 / 87–108 / 88–108 MHz
LW Frequency Tuning Steps
:- AM: 9 kHz / 1
kHz- Single Sideband: 9 kHz / 1 kHz / 10 Hz
—Synchronous detection: 9 kHz / 1 kHz / 100 Hz
MW frequency tuning steps 520–1710 kHz:
—AM: 10 kHz / 1 kHz
—Single sideband: 10 kHz / 1 kHz / 10
Hz- Synchronous detection: 10 kHz / 1 kHz / 100 Hz
MW frequency tuning steps 522–1620 kHz:
- AM broadcasting: 9 kHz / 1 kHz-
Single-sideband: 9 kHz / 1 kHz / 10 Hz-
Synchronous detection: 19 kHz / 1 kHz / 100 Hz
SW frequency tuning steps:
- AM broadcasting: 5 kHz / 1 kHz-
Single sideband: 5 kHz / 1 kHz / 10 Hz-
Synchronous detection: 5 kHz / 1 kHz / 100 Hz
FM frequency tuning steps: 100 kHz / 10 kHz
Station memories (except ETM+)
:- LW:
100- MW:
150- SW:
300- FM:
100- SSB:
100- SYNCHRONIZATION: 100
Sensitivity
:- LW (S/N = 26 dB): <10
mV/m- MW (S/N = 26 dB): <1
mV/m- SW (S/N = 26 dB): <20
μV- FM (S/N = 30 dB): <3
µV Selectivity
: - LW: > 60 dB -
MW: > 60 dB -
SW: > 60 dB -
FM: > 60 dB
Detection synchronization lock range: +/- 1 kHz
IF frequency (DSP): AM 45 kHz; FM 128 kHz
FM stereo crosstalk (headphone output): 35 dB
Speaker: 16 ohms, 0.5 W.
Stereo headphone impedance: 32 ohms
Maximum output power: 350 mW
Quiescent current
: - <25 mA (FM/MW/LW)
- <45 mA (SW)
Standby current: <90 µA
Power supply: 3.7 V Li-ion battery BL-5C or external 5 V
DC Charging / external power supply: 5 V DC / 500 mA
Dimensions: 162 x 53 x 26 (with antenna retracted)
Weight: 130 grams
Package contents:
1x Tecsun PL-368 radio (black
) 1x high-sensitivity
AM antenna 1x stereo headphones
1x BL-5C
Li-ion battery 1x USB-B charging cable, (5V USB charger not included)
1x soft cotton carrying
bag 1x English user manual
