Hamking DX-720 Duplexer
Technical specifications are subject to change without prior notice. Images are for illustrative purposes only.
Code:3360286,00
Manufacturer:KPO
Availability:
In stock (1 see)
Rudná: 1 see
Počernice: 0 see
Price without VAT: 678 ,-
price with VAT: 820 ,-
price with VAT: 820 ,-

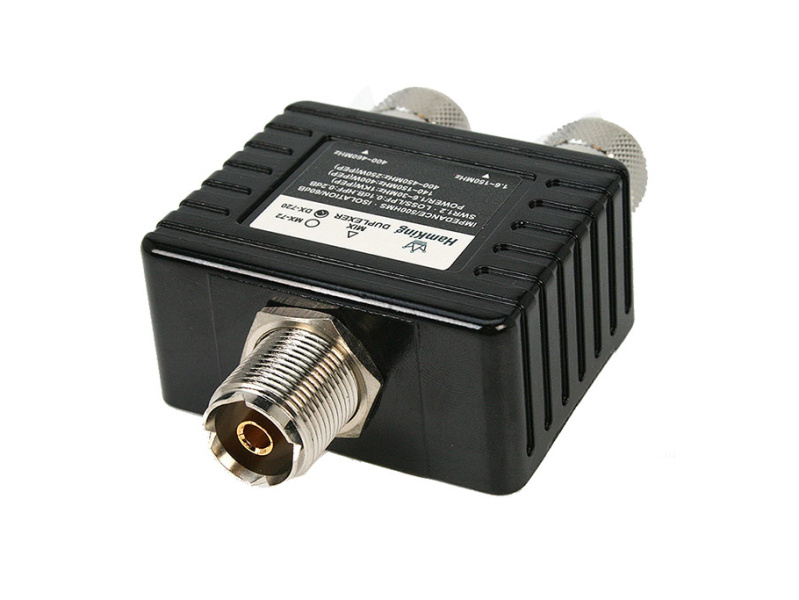

HamKing MX-720 Duplexer
HamKing MX-72 High-quality HF/VHF/ UHF, featuring one UHF connector and two cables with UHF connectors for split frequency bands ranging from 1.6 to 150 MHz and 400 to 460 MHz.
Product Information:
Frequency Band: HF / VHF / UHF
Frequency: 1.6–30 / 140–150 / 400–460 MHz
VSWR: <1.2
Power: 1.6–30 MHz: 400 W (CW), 1 kW (PEP) / 140–150 MHz: 150 W (CW), 400 W (PEP) / 400–460 MHz: 100 W (CW), 250 W (PEP)
Impedance: 50 ohms
Attenuation: LPF <0.25 dB (1.6–30 / 140–150 MHz) / HPF <0.4 dB (400–460 MHz)
Mechanical specifications:
Weight: 140 g
Dimensions L x W x H: 60 x 55 x 27 mm (length including plug) / cable length 345 mm (including plug)
Connections: 1x UHF jack, 2x UHF plugs
HamKing MX-72 High-quality HF/VHF/ UHF, featuring one UHF connector and two cables with UHF connectors for split frequency bands ranging from 1.6 to 150 MHz and 400 to 460 MHz.
Product Information:
Frequency Band: HF / VHF / UHF
Frequency: 1.6–30 / 140–150 / 400–460 MHz
VSWR: <1.2
Power: 1.6–30 MHz: 400 W (CW), 1 kW (PEP) / 140–150 MHz: 150 W (CW), 400 W (PEP) / 400–460 MHz: 100 W (CW), 250 W (PEP)
Impedance: 50 ohms
Attenuation: LPF <0.25 dB (1.6–30 / 140–150 MHz) / HPF <0.4 dB (400–460 MHz)
Mechanical specifications:
Weight: 140 g
Dimensions L x W x H: 60 x 55 x 27 mm (length including plug) / cable length 345 mm (including plug)
Connections: 1x UHF jack, 2x UHF plugs
If you have any questions about this product, please don't hesitate to contact us!
